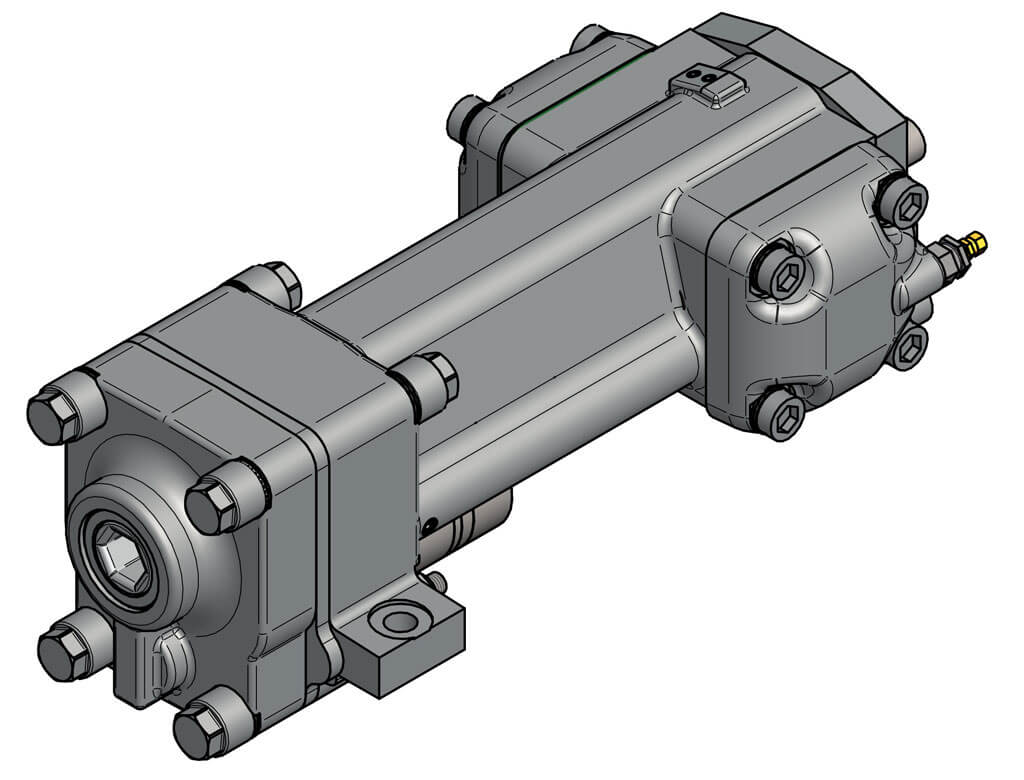

DF500X
The renewed classic is now even more robust and strong. The heavy duty bearings in the front, improved gear and enhanced piston sealing add for the overall economy of this well-proven drifter.
Optimal maximum hole diameter for the DF500X is 45 mm. Doofor DF500X can be used with air flushing. The rock drill can be used with 7/8″ (22mm) and 1″ (25mm) hexagonal drill steels.
This rock drill can utilize the Doofor feed system component kit. Doofor offers carriage plates and a choice of hydraulic, pneumatic and mechanic steel retainers for the new DF500X.
45 MM
OPTIMAL MAXIMUM HOLE DIAMETER
10 KW
POWER CLASS
HEX 7/8″ (22mm), HEX 1″ (25mm)
SHANK SIZE
AIR
FLUSHING
| Nominal power class | 10 kW |
| Percussion pressure | 100–130 bar |
| (Percussion oil-flow) | (50–80 l/min) |
| Rotation motors (cm3) | 12.5, 20, 32, 40, 50 |
| Rotation speed max. | 131–506 RPM |
| Rotation torque* | 70–269 Nm |
| Rotation oil flow* | 25 l/min |
| Lubrication | Air-oil-mist, min. 125–200 g/h |
| Flushing air pressure. | 4–7 bar |
| Flushing air flow | 700-1200 l/min |
| Weight | 60 kg |
*) Numbers given are for available motors. See techical specifiactions for more detailed values. Numbers given are examples for typical jobs and installations. Please refer to catalogue and technical specifications for detailed information on the Doofor products.
